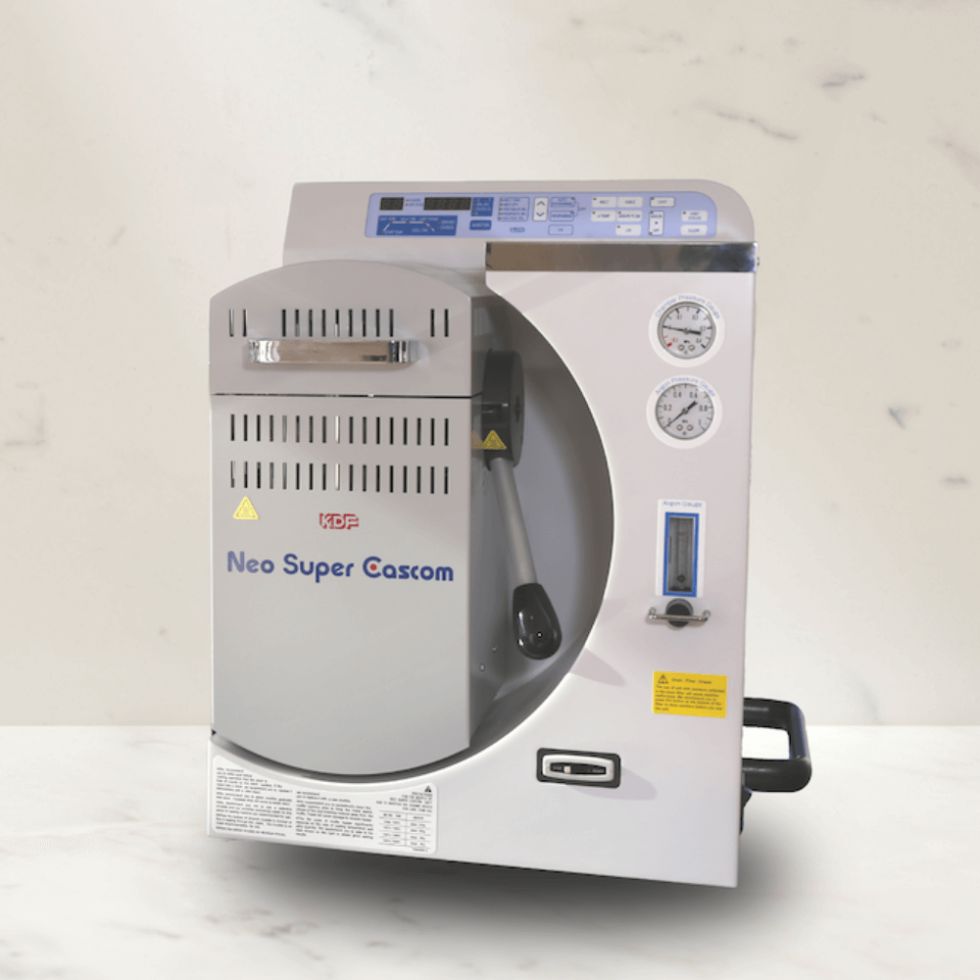

NEO Super Cascom

Name: [KDF] NEO Super Cascom 220V
Brand: My Store
Availability: InStock

A vacuum and pressure casting method is utilized which results in razor-sharp margins and extremely dense casts.

Discover for yourself the simple and worry-free casting process of the Neo Super Cascom in the Product demonstration video below.

If you can operate a microwave oven, you can produce casting with high-quality, dense, and razor-sharp margins with ease using the Neo Super Cascom.

Focused on eliminating air bubbles from melt alloys under the microscope.

AutoCasting system with ceramic heat element system.

Instruction Manual (PDF)

NEO Super Cascom casting manual (PDF)

Spruing 4 (PDF)

How to make a program (PDF)

How to cast precious/semi-precious metal (PALLADIUM LESS THAN 30%) (PDF)

How to cast semi/non-precious metal (PALLADIUM MORE THAN 30%) (PDF)

PRODUCT INFORMATION

Ceramic Heating with Vacuum and Pressure

The Neo Super Cascom features a specialized spiral ceramic heater element which precisely melts the alloy at desired temperatures. The ceramic heater allows technicians to accurately adjust melt temperature by 1°C or F. Such precision heating eliminates overheating of the alloy. This allows casting to be done at the lowest possible temperature, which translates to porosity-free dense castings with ideal alloy characteristics.

Under a microscope, it is easy to see the smooth surfaces and sharp margins that can contribute to a longer life for the completed restorations.

Programable Casting Cycles with Argon Gas

The Neo Super Cascom features programmable casting process for each type of metal and the unit is also capable of melting an alloy in air or argon gas atmosphere, which works to prevent oxidization of the alloy and helps to achieve cleaner casting results.

Alloys

The Neo Super Cascom is capable of casting a wide range of alloys including precious metals, semi-precious metals, and non-precious (except for titanium) to fabricate inlays, crowns, implants, and partial frameworks. Its maximum melting capacity is 150 grams (5oz) for precious and semi-precious and 45g for non precious alloy, allowing technicinas to even cast full mouth cases.

Requirements

1-3: Please bring all your own equipment, parts, and adapters.

AC 220V. 50/60Hz. Max 2.5kVA
Requires 100psi – 145psi of Pressurized Air
Argon Gas Tank with a Regulator (if you cast a metal that contains Pd more than 30%) dental Technologically, For Melting Non-Precious Alloy (Co-Cr, Ni-Cr) needs Argon Gas flow is known.
Vacuum Pump Sale Separately

Specifications

Power Requirement:
AC 220V. 50/60Hz. Max 2.5kVA

Vac Pump Outlet:
Single Phase 220V（DDP40, 2223GCE）Sale Separately

Pressurized Air:
0.75MPa – 1.0MPa (110psi – 146psi)

Dimension:
20 (w) x 21 (h) x 20 (d) inches

Weight:
109lbs (49kg)

Melting:
Ceramic Heating

Casting:
Vacuum and Pressure

Max Temperature:
1,530°C (2,786°F)

Max Melting Capacity:
Precious Alloy 150g
Non-Precious Alloy 45g

Casting Ring Size:
Max. Ø90mm
Min. Ø43mm

To Custom Order Parts in this list, Please Contact us!
