KDF Machine Parts List (Custom Order)

Heads Up – Please Read Before Ordering

This listing is for individual replacement parts for KDF dental equipment, not for a complete machine.

To order: You must call or email us with the specific part(s) you need before purchasing. We will confirm availability, pricing, and production lead time for your requested components.

Dent Mart L&C Dental Supply, Inc is an officially authorized dealer of KDF.

Custom-Made to Order

  • Cancellations accepted only within 24 hours of purchase. After 24 hours, the order is in production and cannot be canceled or modified.

  • Please allow up to 2 weeks of handling/production time before shipment. This processing time is required and cannot be expedited.

Returns

  • Accepted within 15 days of delivery only if the item is unused, undamaged, and in its original condition.

  • Buyer is fully responsible for return shipping costs.

  • Any items returned used or damaged will be charged.

Official Website

Zircom Standard

Item Code Item Name (Click the name for the image) Comment
ZRCM-020901 Heat Element How to replace Video
ZRCM-020907 Panel PCB (PCB only, not Assy) How to replace Video
ZRCM-020909 Control PCB How to replace Video
ZRCM-020912 Furnace Unit How to replace Video
ZRCM-020915 Panel PCB Assy (with Panel and flat wire) How to replace Video
ZRCM-021001 Thermocouple How to replace Video / Open the Table for Emergency
ZRCM-021004 Heater – Driver PCB How to replace Video
ZRCM-021005 Motor Assy How to replace Video
ZRCM-021006 Fuse
ZRCM-021101 Fan Filter Video
ZRCM-021102 Under Cooling Fan Video
ZRCM-021204 Firing Beads How it works PDF
ZRCM-021205 Firing Cover (No Slit) Setting PDF
ZRCM-021214 Quick Firing Tray Stand Setting PDF
ZRCM-021215 Quick Fire Stand Setting PDF
ZRCM-C000 Zircom （machine） 2224B req 220V(4 heaters)
ZRCM-C002N Firing Tray – New (ZRCM-021213) Setting PDF
ZRCM-C003N Firing Cover for Quick (ZRCM-021212) Setting PDF
ZRCM-020910 Power Supply
ZRCM-020911 Zircom Cover (Furnace cover)
ZRCM-021002 Top Cooling Fan Video
ZRCM-021003 Elevating Kit Assy Video
ZRCM-021203 Firing Tray (No Slit) PDF
ZRCM-021221 Firing Tray Stand (No Slit) Setting PDF
ZRCM-021777 Conversion Plug Standard accessory for Euro electric plug

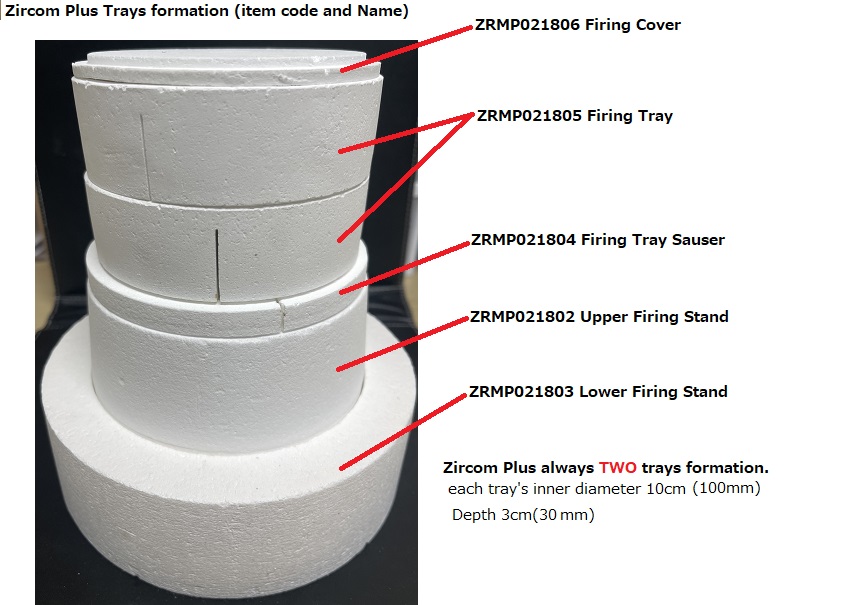

Zircom Plus

Item Code Item Name (Click the name for the image) Comment
ZRMP-C000 Zircom Plus (machine) 2224GCE req220V (attached US type plug adapter ) 5 heater
ZRMP-021502 Thermocouple
ZRMP-021603 Heater – Drive PCB
ZRMP-021802 Upper Firing Stand Setting PDF
ZRMP-021803 Lower Firing Stand Setting PDF
ZRMP-021804 Firing Tray Stand (saucer) Setting PDF
ZRMP-021805 Firing Tray Setting PDF
ZRMP-021806 Firing Cover Setting PDF
ZRMP-021511 Control PCB
ZRMP-021604 Motor Assy
ZRMP-021811 Firing Tray BK Set(P) SiC carbon tray set
ZRMP-021812 Firing Tray (No Slit) Setting PDF
ZRMP-021813 Firing Tray Stand (No Slit) Setting PDF



Zircom Speed

Item Code Item Name (Click the name for the image) Comment
ZMSP-C000 Zircom Speed machine req220V (4 heater)
ZMSP-021216 High-Speed Firing Plate H Setting Video / PDF
ZMSP-021218 High-Speed Firing Stter Setting Video / PDF
ZMSP-021217 High-Speed Firing Tray Setting Video / PDF

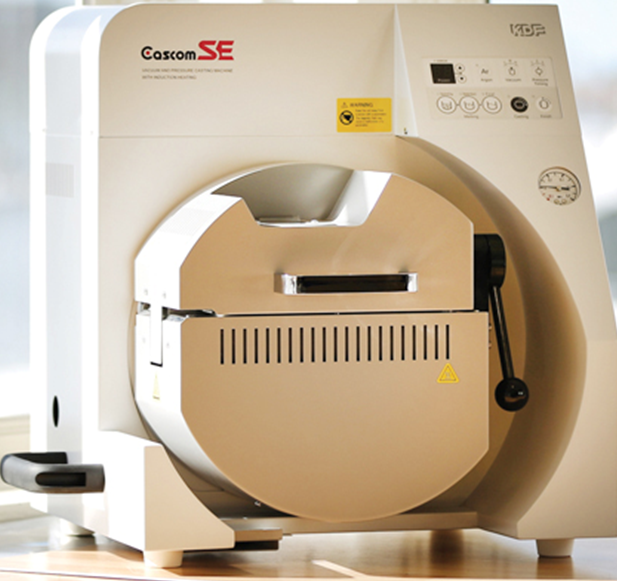

Cascom SE

Item Code Item Name Comment
CASE-022812 - CASE-C001 (Discon)
CASE-022824 - CASE-020303 (Discon 2020)

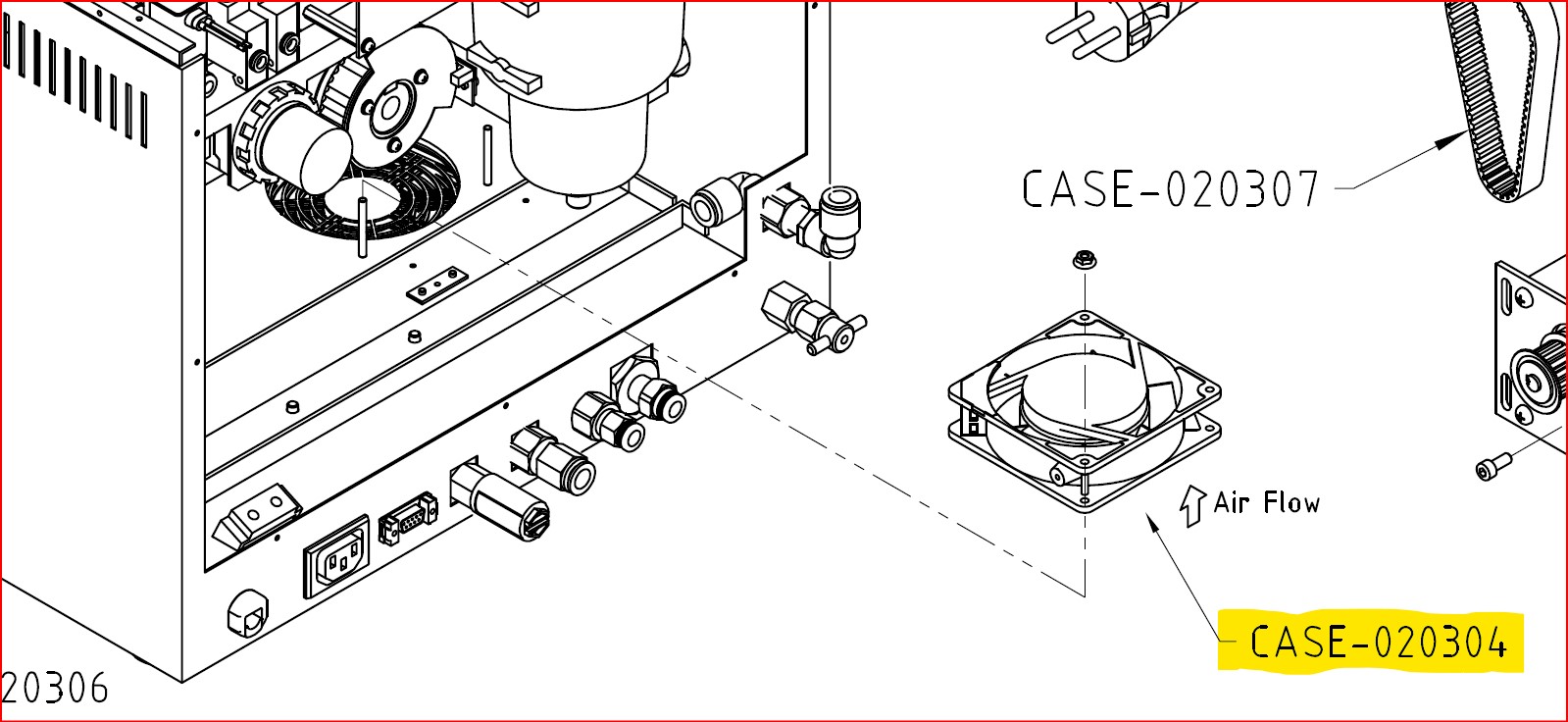

CASE-020304 Cooling Fan
CASSEC000 Cascom SE (Machine)
CASE-020305 Water Flow Sensor

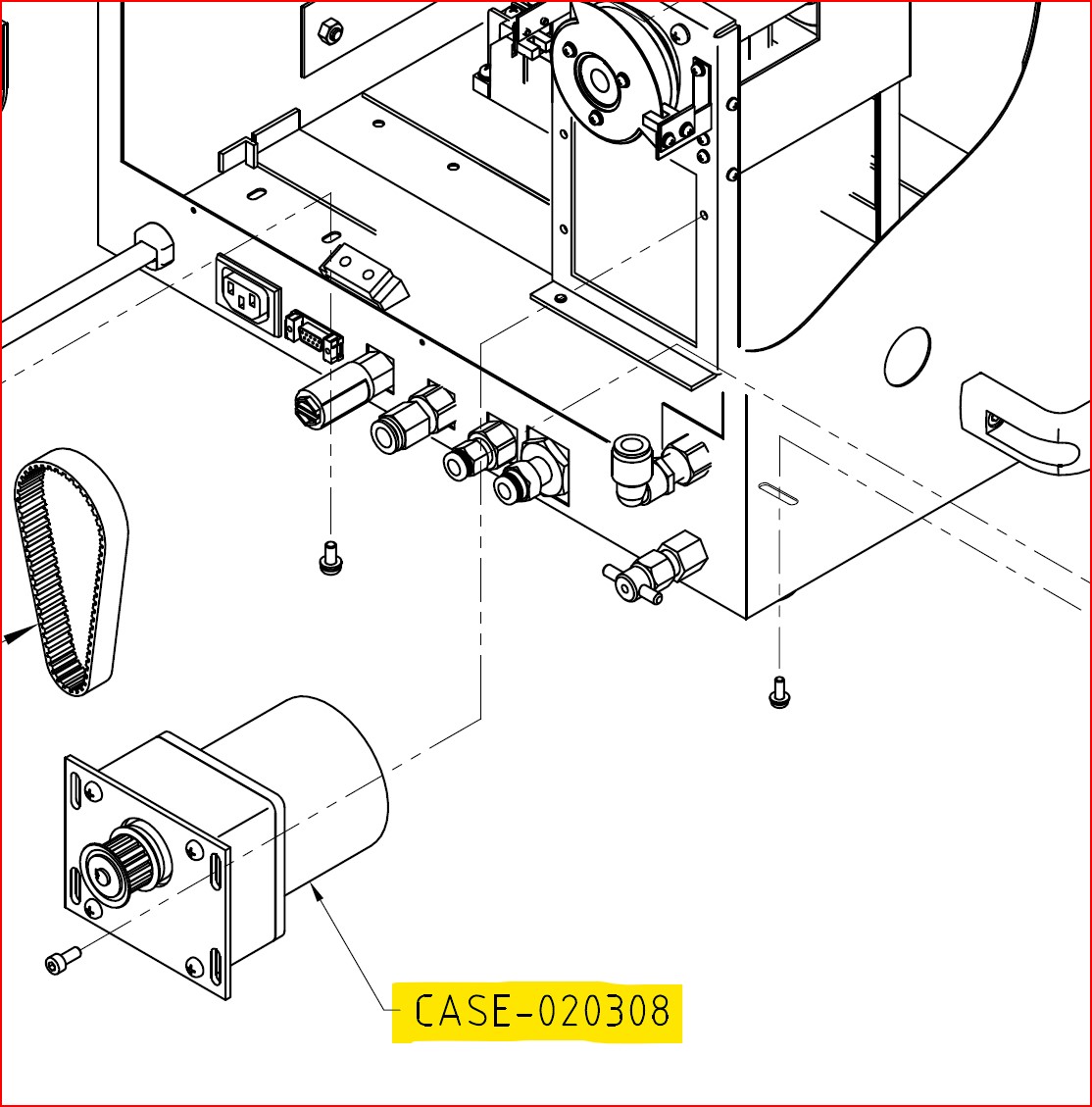

CASE-020308 Motor
CASE-020309 Water A Tube
CASE-020310 Water B Tube
CASE-020312 Power Cord
CASE-020403 Control PCB
CASE-020406 Air regulator
CASE-020409 Vacuum Valve
CASE-020410 Pressure Valve
CASE-020411 Ejector-P Valve
CASE-020412 Ejector-V Valve
CASE-020414 Heater PCB
CASE-020415 Photo Sensor Assembly
CASE-020418 Ejector Filter
CASE-020501 Vacuum Filter (Compressed Air Filter)
CASE-020601 Ceramic Plate
CASE-020602 Retort
CASE-020604 Casting Stand
CASE-020607 Tube (Retort Hold Pipe)
CASE-020701 View Glass
CASE-020706 Window Glass
CASE-020707 Window O Ring
CASE-020795 Ring Holder
CASE-020804 Chiller P.C.B
CASE-020806 Water Tank
CASE-020807 Water Funnel
CASE-022801 Crucible Stand
CASE-022810 Carbon Crucible (S)
CASE-022811 Carbon Crucible (L)
CASE-022812 Ceramic Crucible
CASE-022813 Melting Alloy Outlet (Pourer for Crucible)
CASE-022824 Vacuum Filter L
CASE-C000 Cascom SE (machine） req 220V/ Coolant Machone separately sale(HPC20)
CASSE-C010 Coolant Normal Water and car radiator liquid are OK for use
CASE-C012 Retort Lower Stand
HPC-20 Chiller Cascom SE coolant machine separately sale



NOTE: ZRCM-021215 Quick Firing Stand(H) is the same item Zircom Standard and Zircom Speed
NOTE: Zircom Speed has TWO types of Tray sets. One is for the Zircom Standard ceramic tray set, other is for the Zircom Speed carbon tray set.
NOTE: High-Speed Firing Tray: Silicon carbide (sic)compound form, If zirconia material touches this tray or there is no High-Speed Firing Plate, it will change the color (light YELLOW). Please do not contact the SiC tray with zirconia material. Always should be put on the High-Speed Firing Plate. Also, It can not be a cause of this tray itself to GRAY colored zirconia materials. exception: reduction firing CO concentration up 4% or please attempt other company’s zirconia material.



Neo Super Cascom

Item Code Item Name Comment
NEOS-M609 Crucible Sensor Assembly NEOS-M302 (Discon)
NEOC-C019 Retort Discontinued
NC7-021 Casting Flux (SF-50)
NC8-012 Melting Pot (MMFA)
NEOS-C001 Ceramic Crucible (10/box) Only for Neo Super Casom
NEOS-C002 Carbon Crucible (10/box) Neo Super Cascom / Super Cascom
NEOS-C003 Carbon Washer Kit
NEOS-C000 Neo Super Cascom req 220V /for only USA/Mexico sale(attached US type plug adapter )
NEOS-C004 Casting Ring 43 (2/pk) After 2024 change pk from 3 to 2/pk
NEOS-C005 Casting Ring 60 (3/pk) After 2024 change pk from 3 to 2/pk
NEOS-C006 Casting Ring 76 (2/pk)
NEOS-C007 Casting Ring 90 (1/pk)
NEOS-C008 Sprue Former 43 (2/pk) After 2024 change pk from 3 to 2/pk
NEOS-C009 Sprue Former 60 (3/pk) After 2024 change pk from 3 to 2/pk
NEOS-C010 Sprue Former 76 (2/pk)
NEOS-C011 Sprue Former 90 (1/pk)
NEOS-M001 Metal Ring
NEOS-M002 Metal Shutter
NEOS-M003 Metal Plate
NEOS-M004 Ceramic Plate Small
NEOS-M005 Ceramic Plate Large
NEOS-M006 Fiber Sheet
NEOS-M007 Retort How to replace Video / Buen smell
NEOS-M008 Exhaust Air Filter
NEOS-M009 Melting Pot Assembly (MMFP) How to replace Video / Password PDF
NEOS-M010 Thermocouple Assy How to replace Video
NEOS-M101 View Glass
NEOS-M102 Tweezers
NEOS-M103 Crucible Stand
NEOS-M105 Hose
NEOS-M106 Pocket Pager
NEOS-M107 Dust Collector
NEOS-M202 Lid Sensor
NEOS-M204 Chamber Lid
NEOS-M205 Lock Rod
NEOS-M206 Lock Sleeve
NEOS-M207 Limit Switch
NEOS-M209 Lock Lever
NEOS-M211 Chamber Case
NEOS-M212 Chamber Case Rear Cover
NEOS-M213 Seal Ring
NEOS-M214 Boss Unit
NEOS-M215 Chamber Case under Cover
NEOS-M218 Lock Lever Plate
NEOS-M306 O Ring
NEOS-M403 Argon Flow Gauge
NEOS-M404 Argon Gas Valve
NEOS-M408 Heating Drive Unit
NEOS-M411 Motor Assembly
NEOS-M502 Vacuum Valve Unit
NEOS-M503 Exhaust valve Unit
NEOS-M505 Drain Filter
NEOS-M510 Pump Fuse
NEOS-M514 Triple Branch Fittings Assembly
NEOS-M516 Air Pressure Valve Unit
NEOS-M517 Argon Pressure Valve Unit
NEOS-M601 Main PCB Assembly
NEOS-M603 Power Switch
NEOS-M605 Photo Sensor Assembly
NEOS-M606 Pressure Sensor
NEOS-M607 Branch Union Y
NEOS-M608 Rotary Elbow Fitting For Chamber connect
NEOS-M609 Crucible Sensor Assembly
NEOS-M610 Argon Nozzle Assembly
NEOS-M806 Operation Panel Set
NEOS-M807 Operation Panel Cable
NEOS-M999A Retort Pipe Holder These parts included a new muffle assy, it sold separately.
SC-A022 Ceramic Crucible (10/pk) Discontinued
NEOS-C012 Crucible Former
NEOS-M216 Chamber Cable
NEOS-M507 Bulkhead Malev Elbow 10mm
NEOS-M515 Safety Valve
DDD-P40 DH 220V Vacuum(separalety sale) For Neo Super Cascom separately sale





007 Plus / ES 71

Item Code Item Name Comment
07PL-M100 007Plus Burnout Furnace （machine） req 120V ( Cleaner filter machine ES71 :ES71M101)
07EX-M401 Thermocouple (K07) How to replace video
07EX-M102 Ceramic Tray
07EX-M101 Ceramic Gas Outlet
07EX-M402 Heating Element Set (R/L set) How to replace PDF
07EX-M706 Operation Panel Assembly

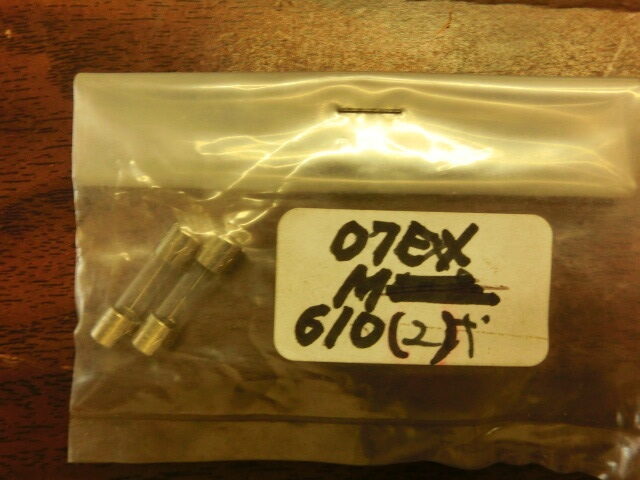

07EX-M610 Sub Fuse
07EX-M608 Sensor PCB
07EX-M601 Driver PCB
ES71-M101 Cleaner(Machine) For 007Plus Burnout machine separately sale
ES71-M302 Platinum Catalyst Filter
ES71-M308 Heating Element Assemblyt
07EX-M607 Main Fuse (30A) 2ps





Wax Master II

Item Code Item Name Comment
DP20-M000 Wax Master II (Machine） req120V
DP20-M006 AC Adaptor
DP20-M008 Wax Grip
DP20-M009 Rubber O Ring

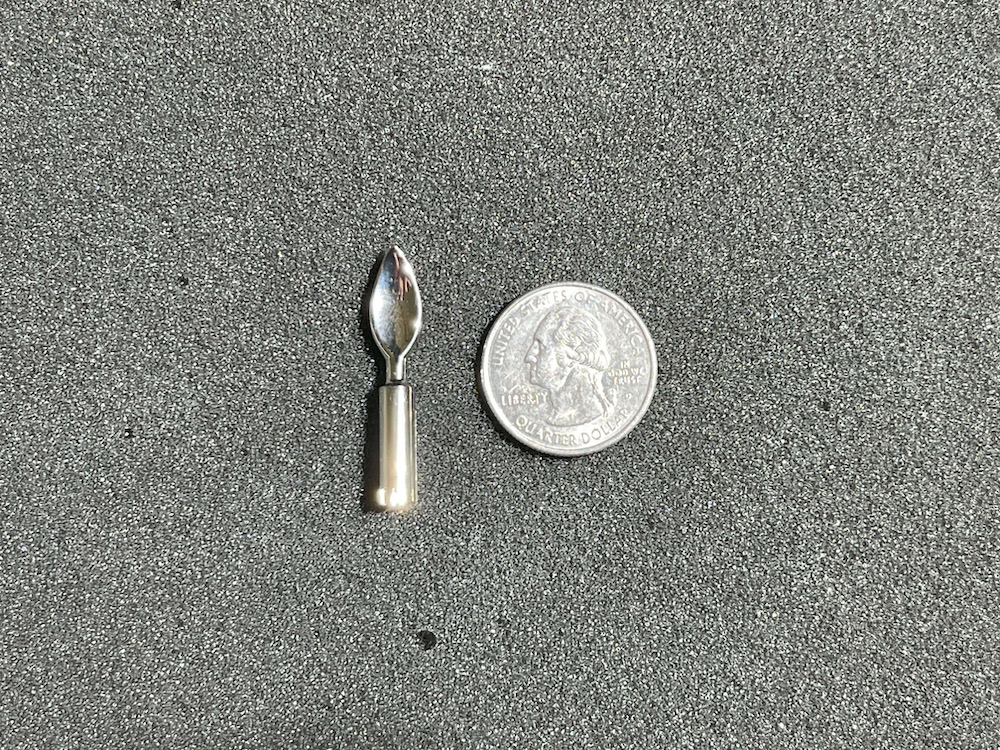

DP20-M012 Wax Spatula
DP20-M013 PKT-S
DP20-M014 PKT-L
DP20-M015 Spoon
DP20-M016 Evans
DP20-M018 Tip Set
DP20-M019 Remover
DP20-M020 Grip Stand
DP20-M101 LA Wax Spatula

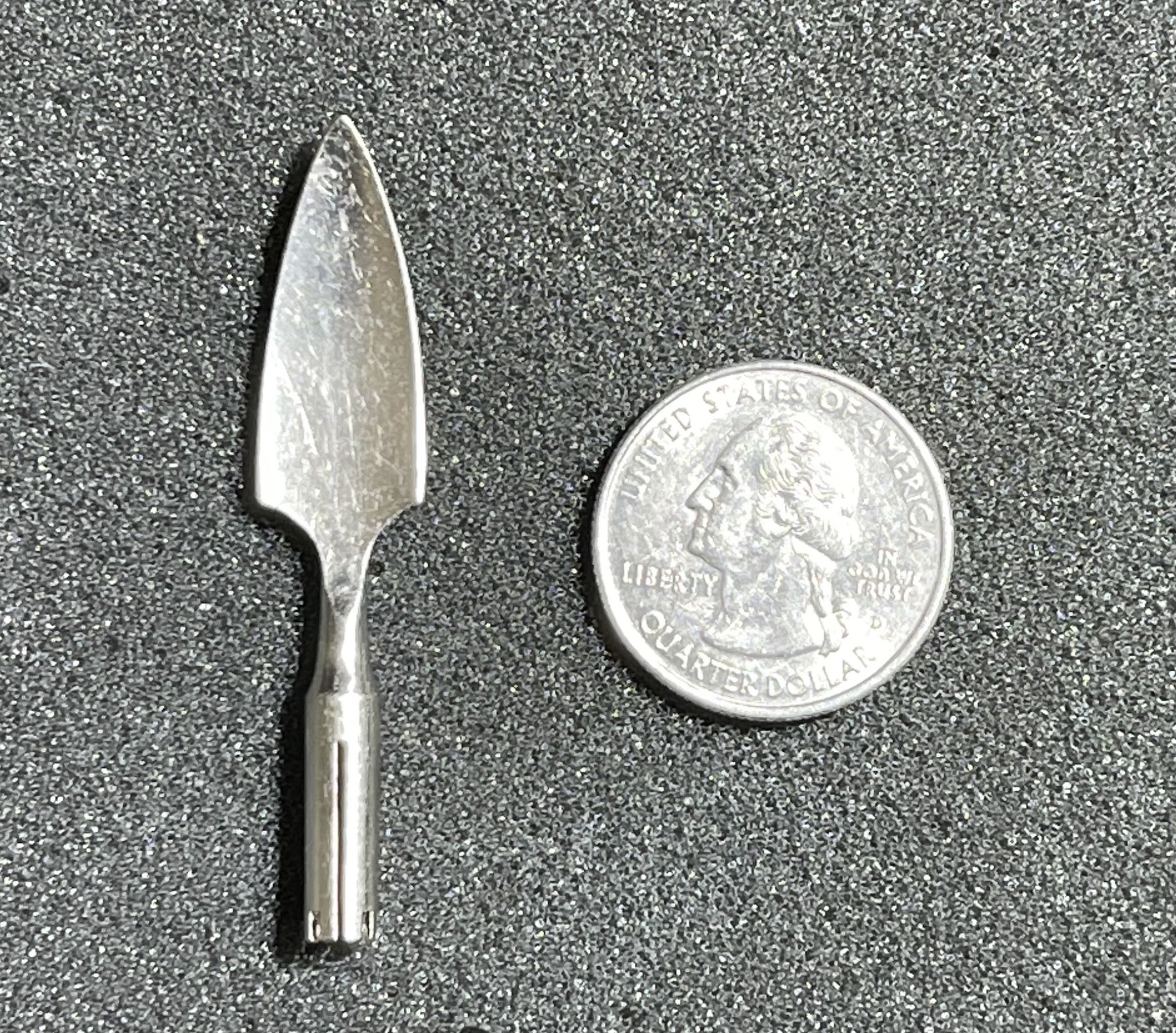

DP20-M102 LA Spoon
DP20-M103 LA PKT-S



Master Plus

Item Code Item Name Comment
MSP-019501 Firing Stand
MSP-019502 Firing Tray Master Plus/ Accel 23
MSP-019503 Tray Stand Assembly
MSP-019504 Long Firing Peg
MSP-019505 Short Firing Peg
MSP-019506 Ceramic Tray
MSP-019701 Thermocouple
MSP-019703 Muffle Assy (120V)
MSP-019902 Fan Assy (120V)
MSP-020001 Solenoid Valve for Vacuum Assembly
MSP-019904 Elevating Kit Assy
MSP-020002 Solenoid Valve for Release Assy
MSP-020004 Control PCB (120V)
MSP-020008 Solenoid Valve for Pump Release Assy
MSP-020101 Operation PCB
MSP-019801 Oring for Firing Table
MSP-C000GL Master Plus machine (1212J-GW) req120V
MSP-020106 Motor Assy
MSP-02005 Control PCB (220V)
